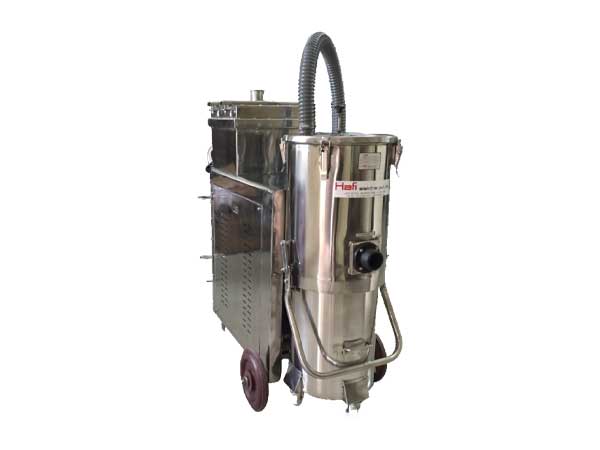

About Best Industrial Vacuum Cleaners - MT Series

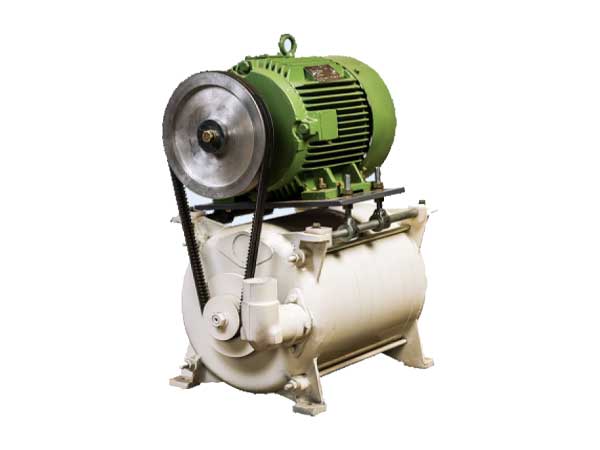

This is a powerful, robust, yet compact and manoeuvrable and ideally suited for wide range of cleaning and dust extraction duties in industry. The exhauster driven by a motor, makes it the perfect machine for those jobs where a really high power suction is required either for collecting heavy material or for connection to a semi-fixed pipe system.
With the aid of a 50 mm hose pipe connected with a suitable accessory tool, our Industrial Vacuum cleaners picks up Dust, Metallic shaving, clips, Cotton rags greasy industrial waste, high viscosity oil, liquid spillages powders etc. both directly from the machines as well as from industrial flooring. A mechanical preseperator directs the heavy particles and the liquids straight into collecting container. The subsequent cloth filter retains the fine particles. The filtrations system is based on fabric, suspended from a manual shaker mechanism to relieve filter clogging.
The machine is widely accepted in Engineering Automobiles, Pharmaceutical, powerstation, Atomic Energy, Ship Building, etc. The machine is extremely low in maintenance. It can be run continuously. Hose pipe can be extended upto 10 - 15 mtrs. & above depending on application.
Basic set accessories for machine cleaning
- PVC Flexible Hose 50 mm 5 Mtr/- 1 No
- PVC Straight Nozzle 1 mtr. long - 1 No
- PVC Bend Nozzle - 1 No, 1/2 Flat Nozzle - 1 No
- Reducer - 1 No, Hose Coupler - 1 Set
- Special Accesories available at extra cost
- Cyclonic Separator, Special Filters, Interceptor for Liquid, Special collecting tools. Hepa filters, etc
Technical Specification
| MODEL NO |
HE - 4000 W |
HE - 3000 W |
HE 2700 W |
HE 2100 W |
HE 1700 W |
HE 1200 W |
| MOTOR (3 PHASE ) - hp / rpm |
7.5 / 2900 |
7.5 / 2900 |
5 / 2900 |
3 / 2900 |
3 / 2900 |
2 / 2900 |
| TURBINE -Stages |
8 |
6 |
6 |
5 |
4 |
3 |
| SUCTION POWER - mm. Wg |
4000 |
3000 |
2700 |
2100 |
1700 |
1200 |
| AIR FLOW - Cubic mtr/hr. |
600 |
500 |
400 |
350 |
300 |
270 |
| HOSE DIAMETER - mm |
50 |
50 |
50 |
50 |
50 |
50 |
| CONTAINER CAPACITY - ltrs |
60 |
60 |
40 |
40 |
40 |
40 |
| DIMENSIONS LXWXH-mm |
1450 x 650 x 1200 |
1450 x 650 x 1200 |
1350 x 650 x 1200 |
1350 x 650 x 1200 |
1350 X 650 X 120 |
1350 X 650 X 1200 |
| WEIGHT - Kgs |
125 |
110 |
80 |
70 |
70 |
65 |
