Top SC Series Industrial Vacuum Cleaners in India - Hafi 2025

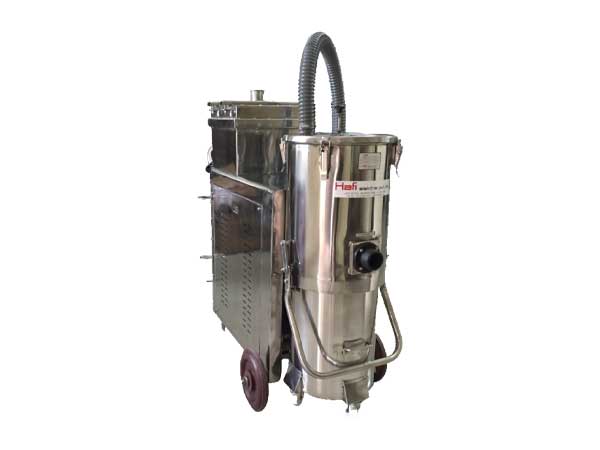

About Industrial Vacuum Cleaners - SC Series
This is a powerful, robust, yet compact and manoeuvrable and ideally suited for wide
range of cleaning and dust extraction
duties in industry. The exhauster driven by a motor, makes it the perfect industrial vacuum machine
for those jobs where a really high power
suction is required either for collecting heavy material or for connection to a
semi-fixed pipe system.
With the aid of a 50 mm hose pipe connected with a suitable accessory tool, the
cleaner picks
up Dust, Metallic shaving, clips, Cotton rags greasy industrial waste, high
viscosity oil, liquid
spillages powders etc. both directly from the machines as well as from industrial
flooring. A
mechanical preseperator directs the heavy particles and the liquids straight into
collecting
container. The subsequent cloth filter retains the fine particles. The filtrations
system is based on
fabric, suspended from a manual shaker mechanism to relieve filter clogging.
The machine is widely accepted in Engineering Automobiles, Pharmaceutical,
powerstation,
Atomic Energy, Ship Building, etc. The machine is extremely low in maintenance. It
can be run
continuously. Hose pipe can be extended upto 10 - 15 mtrs. & above depending on
application.
MODEL NO
HE - 4000 W
HE - 3000 W
HE 2700 W
HE 2100 W
HE 1700 W
HE 1200 W
MOTOR (3 PHASE ) - hp / rpm
7.5 / 2900
7.5 / 2900
5 / 2900
3 / 2900
3 / 2900
2 / 2900
TURBINE -Stages
8
6
6
5
4
3
SUCTION POWER - mm. Wg
4000
3000
2700
2100
1700
1200
AIR FLOW - Cubic mtr/hr.
600
500
400
350
300
270
HOSE DIAMETER - mm
50
50
50
50
50
50
CONTAINER CAPACITY - ltrs
60
60
40
40
40
40
DIMENSIONS LXWXH-mm
1450 x 650 x 1200
1450 x 650 x 1200
1350 x 650 x 1200
1350 x 650 x 1200
1350 X 650 X 120
1350 X 650 X 1200
WEIGHT - Kgs
125
110
80
70
70
65
Basic Set Accessories For Machine Cleaning
PVC Flexible Hose 50 mm 5 Mtr/- 1 No
PVC Straight Nozzle 1 mtr. long - 1 No
Reducer - 1 No, Hose Coupler - 1 Set
PVC Bend Nozzle - 1 No, 1/2 Flat Nozzle - 1 No
Cyclonic Separator, Special Filters, Interceptor for Liquid,
Special collecting tools. Hepa filters, etc
Special Accesories available at extra cost
Advantages
Collects the Brass, Metal/Aluminum Powder
and Chips
Also useful for Collection of Shots from
Pit area as well as surrounding Area
More helpful to collect the splatter from
Air Tanks, Fuel Tanks and enclosure
Sand, Granules, Aggregate, waste Material
Collections
Plays vital Role for Workshop Cleaning
for wall, roof to collect the Dust & Cobwebs
Applications
Burr Collection from CNC, VMC machines,
Drilling Machines
Shot Collection from Shot Blasting Plant
Area and Equipments
Glass Fibre / Pieces collection
Food and Pharma Plant Cleaning
Construction Site Collection of Aggregate
/ Sand
Control Panel Cleaning
