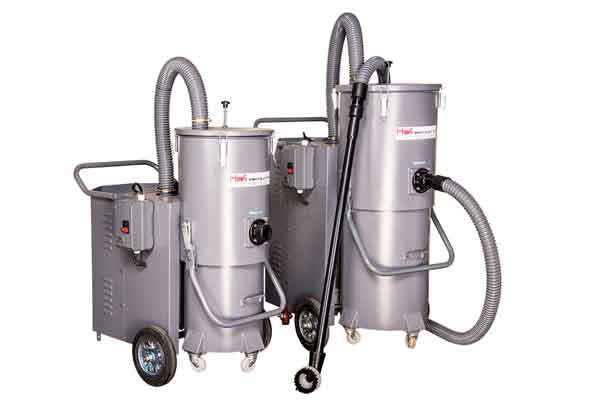

Elektra Vac Flux Recovery System have proven themselves as the
most essential accessory to the entire Sub-Arc Welding process.
They save value of flux, helps make better welds and produce all
important saving in man hours. Flux Recovery unit keep abrasive
flux away from moving parts on the welding ring. These systems
are capable of separating out slag and fine flux returning only
the clean reusable flux to the hopper. Hafi Elektra Pvt. Ltd. Flux Recovery
Unit are for large/small flux recovery operations models start from
2 HP and extend upto 7.5 HP and are designed to run 24/7. We
offer both portable and fixed (stationary) units.
Primary Separator
To ensure efficient separation of reusable flux from slag and flux. The primary
separator isolates slag and fused
particles and enhance the removal flux. It also acts as a collection hopper for
unused flux & separation
efficiency for finer flux grades. The primary separator allows reusable fine flux to
settle, ensuring complete
separation from the flux.
Applications
Submerged Arc Welding Machine | Beam Welding Machine | Column & Boom Flux Recovery
System
Advantages / Features
1. Very robust construction & compact unit.
2. Superior filtration with large surface area.
3. Direct Drive - Side Channel Blower
4. Continuous rates machine.
5. Available in both Stationary & Portable models.
6. Magnetic Separator (optional).
7. Heating Coil / Jacket System for preheat the
8. Recovers all unused flux.
flux (optional).
9. Greatly reduces clean up time.
10. Sight Glass to Check the flux level
Optional Features :
Magnetic Separator
Magnetic filter stops the metal debris mixed in the Welding flux returning only the
slag free
clean reusable flux to the hopper.
Heating Coil / Jacket
Welding flux heated by the heating Coil / Jacketed with temperature adjust by
control panel.
| TECHNICAL SPECIFICATION |
HE 1200 FR |
HE 1800 FR |
HE 2700 FR |
HE 4000 FR |
| MOTOR (3 PHASE) HP |
2 |
3 |
5 |
7.5 |
| INPUT SUPPLY |
415 V / 3 Phase / 50 Hz |
415 V / 3 Phase / 50 Hz |
415 V / 3 Phase / 50 Hz |
415 V / 3 Phase / 50 Hz |
| SUCTION POWER mm.wg
|
1200 |
1800 |
2700 |
4000 |
| AIR FLOW - cubic mtr / hr |
270 |
350
|
400
|
600
|
| VACUUM PRODUCER - TURBINE
|
3 STAGE |
4 STAGE |
6 STAGE |
8 STAGE |
| CONTAINER CAPACITY Ltrs. |
30 |
30 |
30 |
40 |
| PRIMARY SEPARATOR CAPACITY Ltrs. |
50 |
50 |
50 |
50 |
